1. The plastic injection forming machine B•ZT-II is high work efficiency because of double-mould alternative forming ways.
2. This machine can pre-mold on screw with material-input in a fixed quantity at a specific position.
3. The speed of hydraulic mould closure can be adjusted low or high.
4. With pneumatic interlocking and small installation space makes sure that it is convenient to assemble and disassemble the mould.

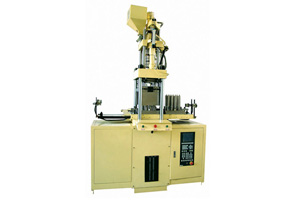

B•ZT-II Plastic Injection Forming Machine
5. Should-injection mould diameter of tube is 12.7mm-60mm. The shape of the mould is ellipse and round; of course, except screw shape, we can produce the products according to the needs of customers'.
Main Technical Parameters of B•ZT-II Plastic Injection Forming Machine:
| Power of The Main Machine | 5.5KW |
| Heating Power | 3.5KW |
| Casting Quantity | 63cm3 |
| Power Supply | 136MPa |
| Mould-Lock Power | 400KN |
| Mould-Open Power | 100KN |
| Production Capacity | 22-24pcs/min |
| Dimension | 2300×1700×2800mm |
| Weight | 1300kg |
TallKee Industry is a professional manufacturer and supplier of plastic injection moulding machine in China. With 15 years experience of producing, selling and service in this products, we have exported plastic injection forming machine worldwide like the United States, Japan, Russia, Australia, New Zealand, Indonesia, Malaysia, India, Burma, Italy, France, Nigeria, Vietnam, Iran, Syria, Kazakhstan, Poland, Romania etc, more than 80 countries and regions, and gain great reputation among those customers. If you need, please contact us.
